Printer Type

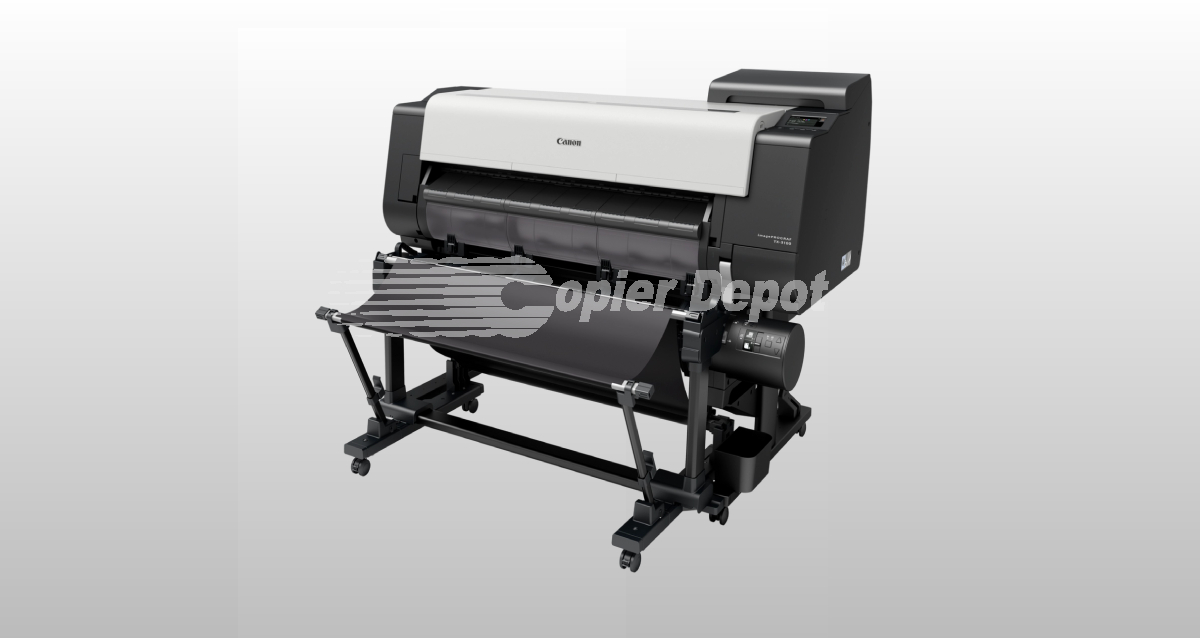

5-Color 36-inch Large Format Printer
Number of Nozzles
Total: 15,360 - MBK: 5,120 nozzles - C, M, Y, BK: 2,560 nozzles each
Nozzle Pitch
1,200 dpi
OS Compatibility
Windows 10, 11 (32/64bit) - Windows Server 2016, 2019, 2022 (64bit) - macOS 10.15 or later
Standard Interfaces
USB 3.0, 10/100/1000 Base-T/TX Ethernet, Wireless LAN (IEEE 802.11 b/g/n/ac)
Ink Droplet Size
4 picoliter
Ink Capacity
160 ml or 330ml per color
Ink Type
LUCIA TD Pigment Ink
Color Set
Pigment: Matte Black, Black, Cyan, Magenta, Yellow
Buffer Ram
3 GB (Physical)
Media Width
Cut Sheet 8-36 inches - Roll Feed 8-36 inches
Media Thickness
0.07-0.8mm
Maximum Roll Print Length
Roll Feed - 59' (18 meters)
Maximum Media Roll Diameter
6.69 inches (170mm)
Borderless Printing Width
8, 10, 11, 12, 13, 14, 16, 17, 20, 24, 30, 36 inches
Paper Feed Method
Roll Feed: One Roll, Top-loading, Front Output - Cut Sheet: Top Loading, Front Output
Languages
SGRaster, HPGL/2, HP-RTL, JPEG, TIFF
Noise Level Approx
Operation: 48 dB (A) - Standby: 35 dB (A) or less
Physical Dimensions
64.6 x 27.6 x 46.1 inches (W x D x H)
Weight
approx. 209 lbs (95 kg) without stand
Power Source
AC100-240V (50-60Hz)
Power Consumption
Maximum: 135W or less - Standby: 4.0W or less - Power Off: 0.3W or less
Operating Environment
Temperature: 59°-86° F (15°-30° C) Relative Humidity: 10-80% (No Condensation)
User-replaceable items
Print Head (PF-10), Maintenance Cartridge (MC-31), Ink Tanks (PFI-110/PFI-310/PFI-710), Cutter Blade (CT-17)
Software Included
imagePROGRAF TX Unified Printer Driver, Accounting Manager, Apple AirPrint, Canon Print Service, Device Management Console, Direct Print & Share, Free Layout Tool, Free Layout Plus, imagePROGRAF Printer Driver for Windows®/Mac®, Media Configuration Tool, PosterArtist Lite, Optimized Driver for AutoCAD, Canon PRINT Inkjet/SELPHY
